100-Well Tray Seed Dispenser 요약정보 및 구매

Simple. Fast. Reliable.

상품 선택옵션 0 개, 추가옵션 0 개

제조사 LabTIE
납기일 2-3 일
판매가격 0원
포인트 0점(구매금액 : 0%)
배송비결제 3,500원   (주문금액 10만원 이상일시 배송비 무료)

선택된 옵션

  • 100-Well Tray Seed Dispenser (+0원)

상품 정보

상품 기본설명

Simple. Fast. Reliable.

상품 상세설명

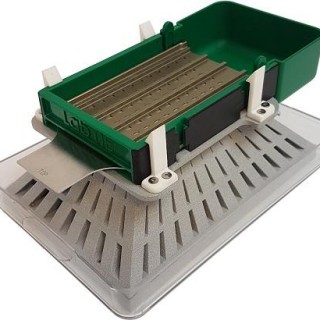

Don’t settle for slow, repetitive and inefficient methods of dispensing/plating seeds in trays. Use the 100-Well Tray Seed Dispenser from LabTIE to improve your consistency in dispensing while speeding up your process over 80 times.



Advantages:



  • Accurate dispensing

  • Dispensing in only 30 seconds

  • Sterile dispensing

  • Easy cleaning

  • Exchangeable seed plates, “Different seed type? Just slide in a different seed plate”

  • Custom made seed plates available



Due to its modular design with exchangeable metal seed plates it is used for all types and variations of seeds (0.2mm - 9.0mm).

The Seed Dispenser is perfect for dispensing difficult seeds that are; not pelleted, vary in size or fragile seeds. It exceeds current competitive systems in speed, accuracy, variety of seed types and especially ease of use.



LabTIE Seed Dispensers are mostly used for:

  • Germination
  • DNA extraction
  • Seed Counting
  • Vitality assays
Do you use a different grid/tube/tray or plate?
Related Products:

Video shows how to use the 100-Well Tray Seed Dispenser
This video shows how to use the 100-Well Tray Seed Dispenser.

7bc66abb733d9c7968ae5a6d59335856_1581479

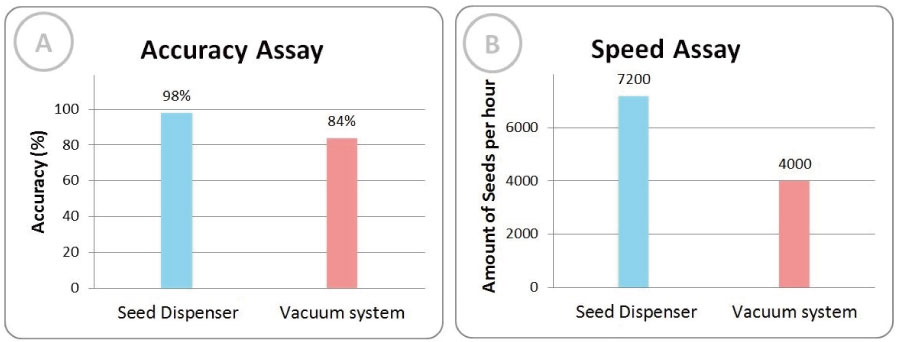

Figure 1. The LabTIE Seed Dispenser increases accuracy in seed dispensing compared to other methods and systems while speeding up your process.
A: The LabTIE 100-Well Tray Seed Dispenser was used to dispense batches of 100 lettuce seeds, resulting in a 98% accuracy of a single seed per location/well. Compared to the use of a vacuum dispense system, over 10% of the dispensed seeds contained anomalies such as double or triple seeds per location (anomalies), or even empty wells.
B: The LabTIE 100-Well Tray Seed Dispenser dispenses 7200 seeds per hour compared to 4000 seeds using the vacuum system. Although the dispense time is roughly the same for both systems (approx. 30 seconds per cycle) correcting the anomalies afterwards was more time consuming using the vacuum system. The LabTIE Seed Dispenser seemed to be 80% faster while being more accurate in dispensing 'difficult' seeds.

Technical data

Features

Details

Compatibility

Germination trays, Blot paper, Harmonica blot paper, Agar, Soil etc.

Amount of Seeds

1 per well/tube/grid (multiple seeds are possible, please contact us)

Seed Types

All type of seeds such as: Tomato, lettuce, onion, brassica, flower seeds etc.
Currently supporting over 40 seed types

Sterilization

70% EtOH (Not Autoclavable)

Product material types

ABS+PC, Nylon, RVS304, Alumide and 70/75 hard anodized aluminum alloy

Extension

Main Unit can also be adapted and used to dispense beads and powders
